Welcome to the Board reference manual

In these topics, you will find the information you need to perform all the administrative and user tasks associated with using Board. The documentation also provides conceptual overviews, tutorials, and a detailed reference for all supported formulas, commands, functions, and operators.

You can start by browsing the contents on the left or using the search icon in the top right to search across the topics provided. If you do not find the information you are looking for, please feel free to reach out to Board Support using the "FEEDBACK" link at the top right of each page.

This documentation covers the Board 2021 Summer Release, but all new features and functions are outlined in the "What's new: release notes" section of this manual.
The latest release is Board 2023 Summer release (see release notes here) and it can be downloaded from Board's Community site, by following this link (registered account required, on-premises installation only).



What is Board?

Board is the leading decision-making platform that has enabled people from more than 3000 companies worldwide to have a transformative impact on their business by rapidly deploying Business Intelligence, Analytics, and Performance Management applications in an all-in-one solution.

Board allows organizations to intuitively play and create with data to produce a single, accurate, and complete view of business information, gain actionable insights, and achieve full control of performance across the entire organization.

Here's a breakdown of the main sections of Board:

Access to these sections of Board is managed through Licenses and other security settings defined under the System administration area or in the Subscription Hub for Cloud subscribers.



Board deployment

Board can be deployed in two ways: in the Cloud (SaaS) and On-premises.

Board Cloud is backed by Microsoft Azure and provides all the platform capabilities plus all the benefits that a powerful cloud infrastructure can offer in terms of world-class security, reliability, scalability, and performance. The installation and deployment is handled directly by the Board's Cloud Team, which will also take care of future updates.

Discover more about Board Cloud.

Board can also be installed on-premises or on any cloud environment of your choice. In both cases, your IT department will be in charge of upgrades and maintenance.



Board terminology

Before exploring Board's features in detail, here's a list of common use terms you will often encounter in this manual:

  • Capsule: a Capsule is essentially a dashboard that may contain various Screens. Each Screen can contain single and multiple objects, and Procedures as well. The Capsule is what the end-user will see, browse and interact with: depending on the authorizations received, the user will also be able to manipulate data and update the corresponding Data model
  • Cube: A Cube contains data (not only numeric, but also text, images and files in different formats), modeled in multidimensional or relational format. Cubes can be analyzed and viewed by its different dimensions and hierarchy levels: their dimensions determine the data granularity and their capability to show, drill, slice and dice data. Cubes can have different structures, versions, data type and data nature. The smallest single item within a Cube is defined as a Cell
  • Data Reader. The Data Reader allows you to import data from text files and relational databases, as well as any ODBC or OLE-DB compliant data source. A Data Reader protocol defines how external data should be imported into a Board Data model and mapped to Entities, Cubes and Relationships
  • Design Mode. To create or edit a Screen, you need to be in Design mode. When Design mode is active, all features and functions for configuring Objects become visible, provided the user has an appropriate Board license and authorizations.
    When Play Mode is active, you can only view and navigate through existing Capsules: in Play mode you can only access those features and actions made available by Capsule Designers
  • Entity: an Entity is an information set of homogeneous items by which data can be viewed and summarized. Generally, they're made of text and codes, like Customers, Products, and Cities. Entities (and Relationships) are Cubes dimensions. A single occurrence of an Entity is known as a member
    Example of Entity members
    Diagram of an Entity
  • Layout. The Layout object defines a query on the multidimensional Data model. It specifies which data should be retrieved from the Data model and how it should be managed and showed in the corresponding Object
  • Play Mode. When Play mode is active, Board's workspace provides a simple environment with fewer icons and basic functionalities for navigating through the Capsule and for exporting a Screen or selected Objects. Depending on the user license and authorization, multidimensional navigation features are also available: the user will be able to filter, sort, drill-down on data and much more
  • Procedure. A Procedure is a customizable sequence of Actions (also called Steps), capable to perform a broad range of tasks: for example, it can be used for updating a Board Data model, processing, extracting or printing data, performing calculations, broadcasting reports and for navigating Capsules and Screens
  • Screen: a Screen is a single working area within a Capsule. It can contain one or more Screen Objects, like tables (Data View), charts, gauges, labels, and more. Each Screen and its Objects are usually linked to a single Board Data model, although it's possible to connect multiple databases to the same Screen
  • Screen Object (also called Object): a Screen Object is a widget that displays data within a Screen. An Object can take different forms, such as tables, charts and maps, or act as a data filtering element in the Capsule, as for the Pager, the Selector, the Calendar and more
  • Relationship (also called Entity/Relationship Model): when two or more Entities have a many-to-one relationship, then a relationship (or hierarchy) is defined. For example, the entities Salesman, Customer and Order can be organized into the relationship "Order→Customer→Salesman" since there is a many-to-one relationship existing between Order and Customer, and between Customer and Salesman.

    Board data modeling system also supports special types of Entity which support defining parent-child relations between its members, in what we call Unbalanced Entities. These Entities can relate to other classic Entities in a common Hierarchy within Board. An Unbalanced Entity contains an Unbalanced hierarchy, where data is aggregated on the fly along the hierarchy. These structures are typically used in financial reporting or in organization structures and are common to many other business models

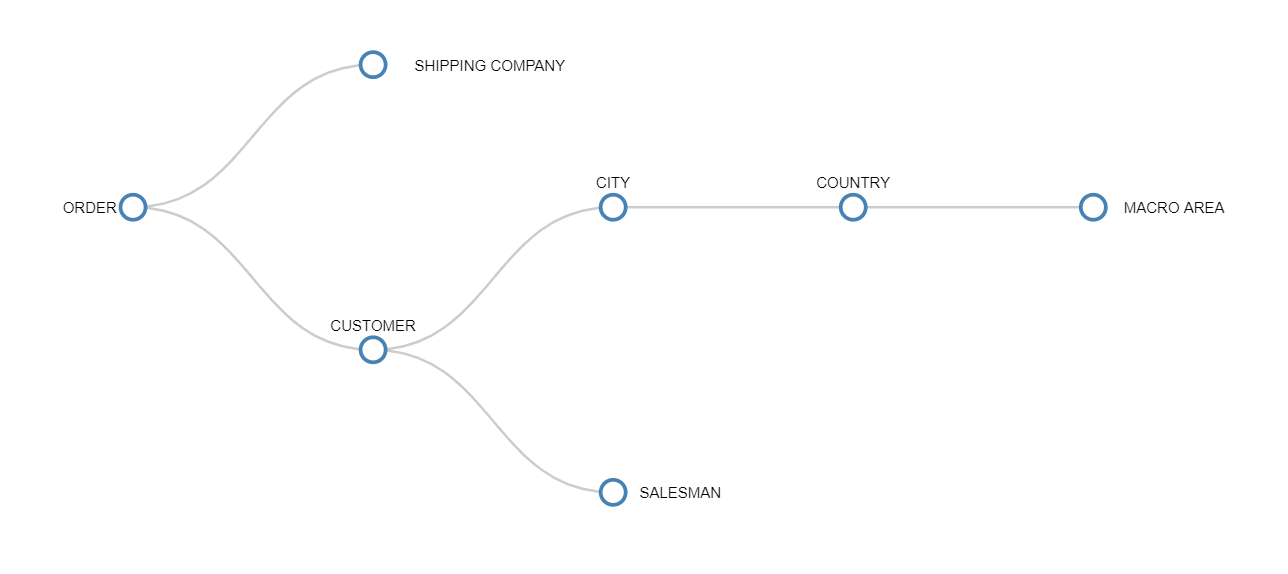

Example of relationship between entities
