Edit Layout

Edit Layout allows any user to edit an existing layout of an object to perform a new analysis.

Layout edited in web cannot be saved into capsules, but they can be saved into presentations.

Every licence type can edit existing layouts on the web.

The Web Layout Editor

Clicking on this icon , the edit layout window will open. This window will open in full screen and there are 3 types of visualization:

• View: this view has no preview of the layout, suggested for advanced Board Users
• Graphical View: This view gives a big preview of the layout, it's designed for the least expert users.
• Split View: it's an intermediate view between the previous two.

You can select your preferred view with this button at top left of the window.

The dark area of the window is common to the three views, all the property windows of the various objects (control, bloc or axis) will be shown as a sliding panel on the right.

This screenshot show an example of analytical view window:

1. Layout Title: here you can change the layout title;
2. Select view: here you can switch between analytical, graphical and split view;
3. Data: here you can see the list of cubes, when you drag a cube, all the areas in which you can drop it will start blinking.
4. Entities: here you can see the list of entities, when you drag an entity, all the areas in which you can drop it will start blinking.
5. More: here you can see algorithm rules and ranking functions.
6. Clear Layout: this button will clear the layout;
7. Apply/cancel/save: here you can apply or discard the changes, if you click on save changes will be applied and the layout will be refreshed.

Layout Data

The data area shows the layout blocks of the layout. To add a data block Just press the "+" sign or drag and drop an object from the left panel to the data area

You can put cubes, column algorithms, rules, ranking function or entities and relationships in the data area.

The following three screenshots show the data area in the three views:

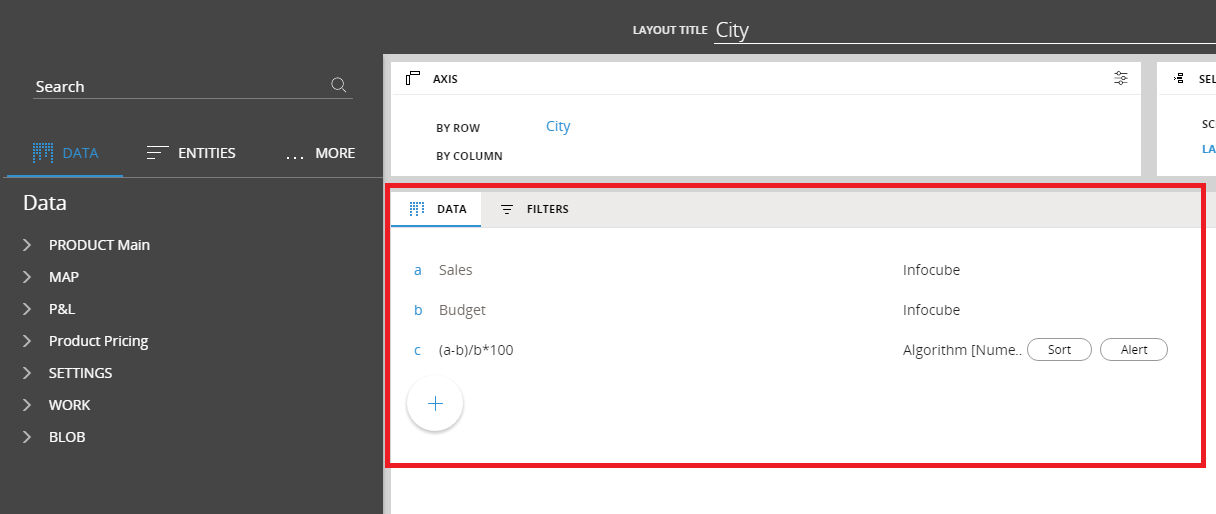

Analytical and split view

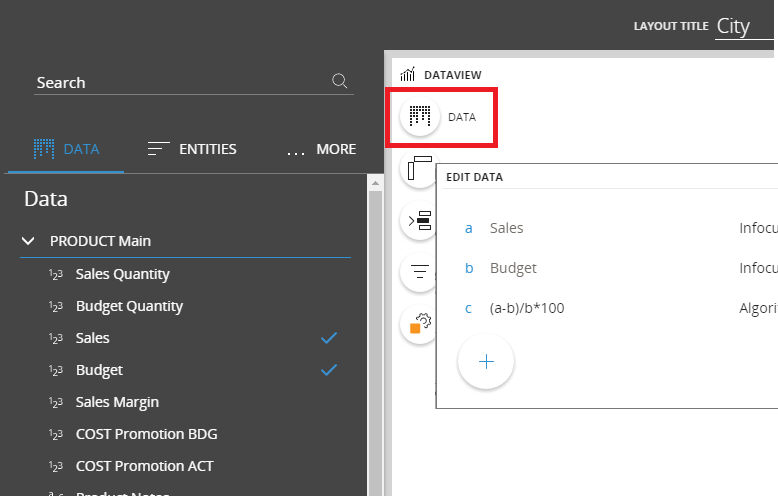

Graphical View

Clicking on a Block a sliding panel on the right will appear, it will show the block settings.

Layout Axes

Click on the Axes tab and set entities in rows and columns of the Layout: drag and drop the entities from the left list to the By Row and By Column

By clicking the icon you a sliding panel on the right will appear, containing the axes settings.

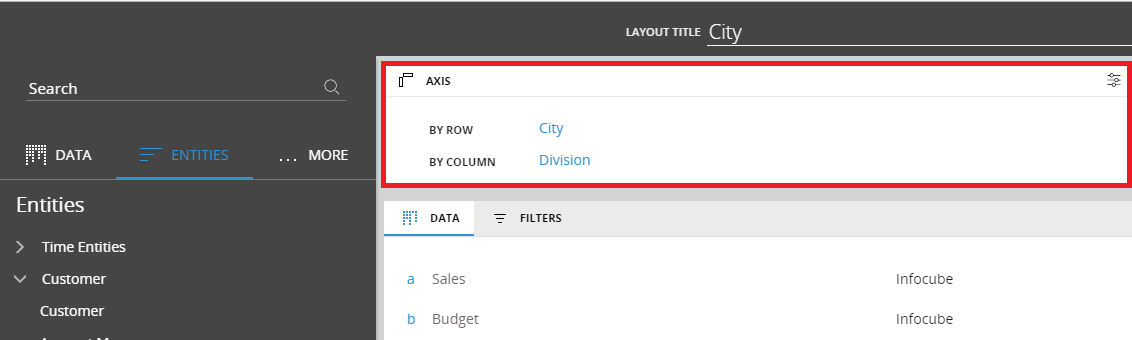

Analytical and Split views:

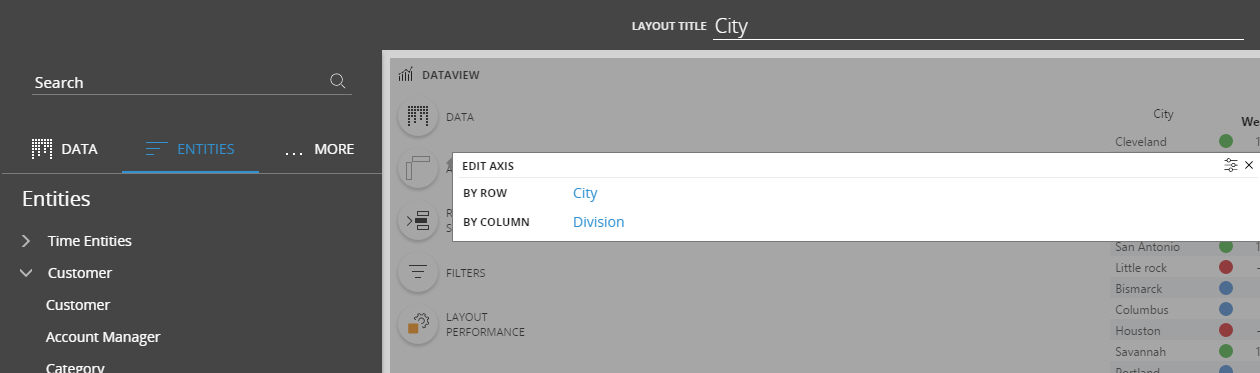

Graphical View:

Layout Filters

Layout filters are used to set sorting and filtering options.

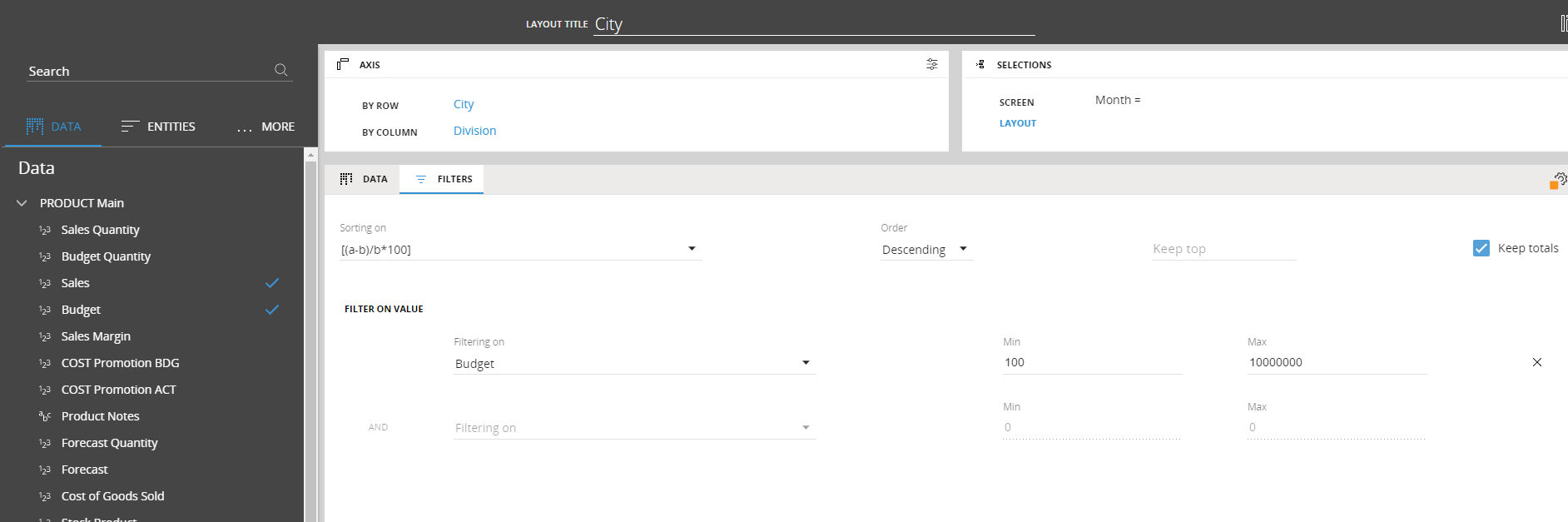

Analytical and Split views:

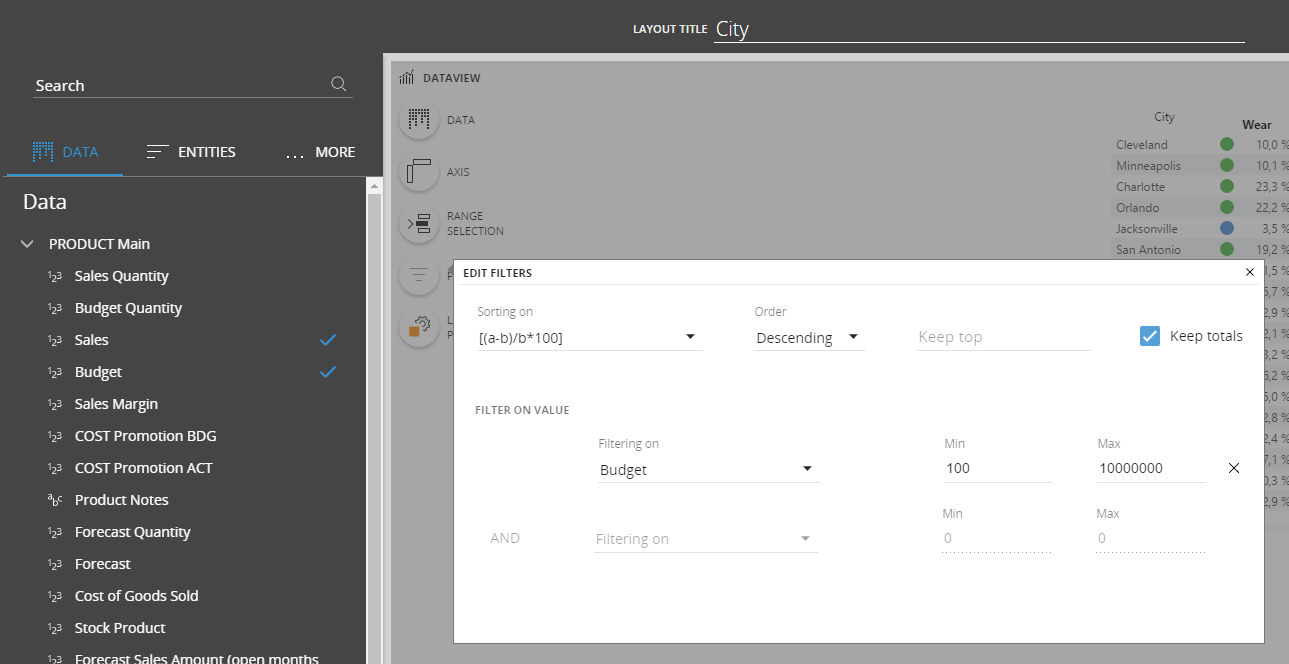

Graphical View:

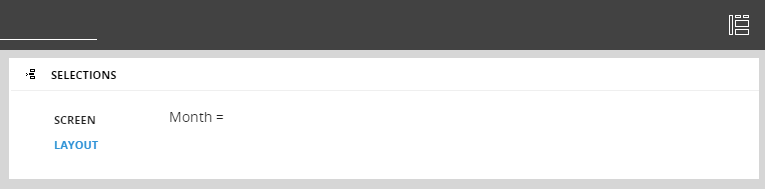

Layout Select

In the Select tab, it is possible to define a Selection which applies to the Layout only.

Analytical and split views:

Graphical View:

Preview Area

Graphical view and split view contain also a preview area.

This area will show a preview of how the layout will look like after the changes, moreover is possible to drag and drop objects directly here.

Automatically Board will put entities by row, cubes ranking functions rules and algorithm in data when dropped into the preview.

You can disable/enable the automatic refresh using this button:

you can also enter the layout settings by clicking this icon:, a sliding panel will appear on the right.

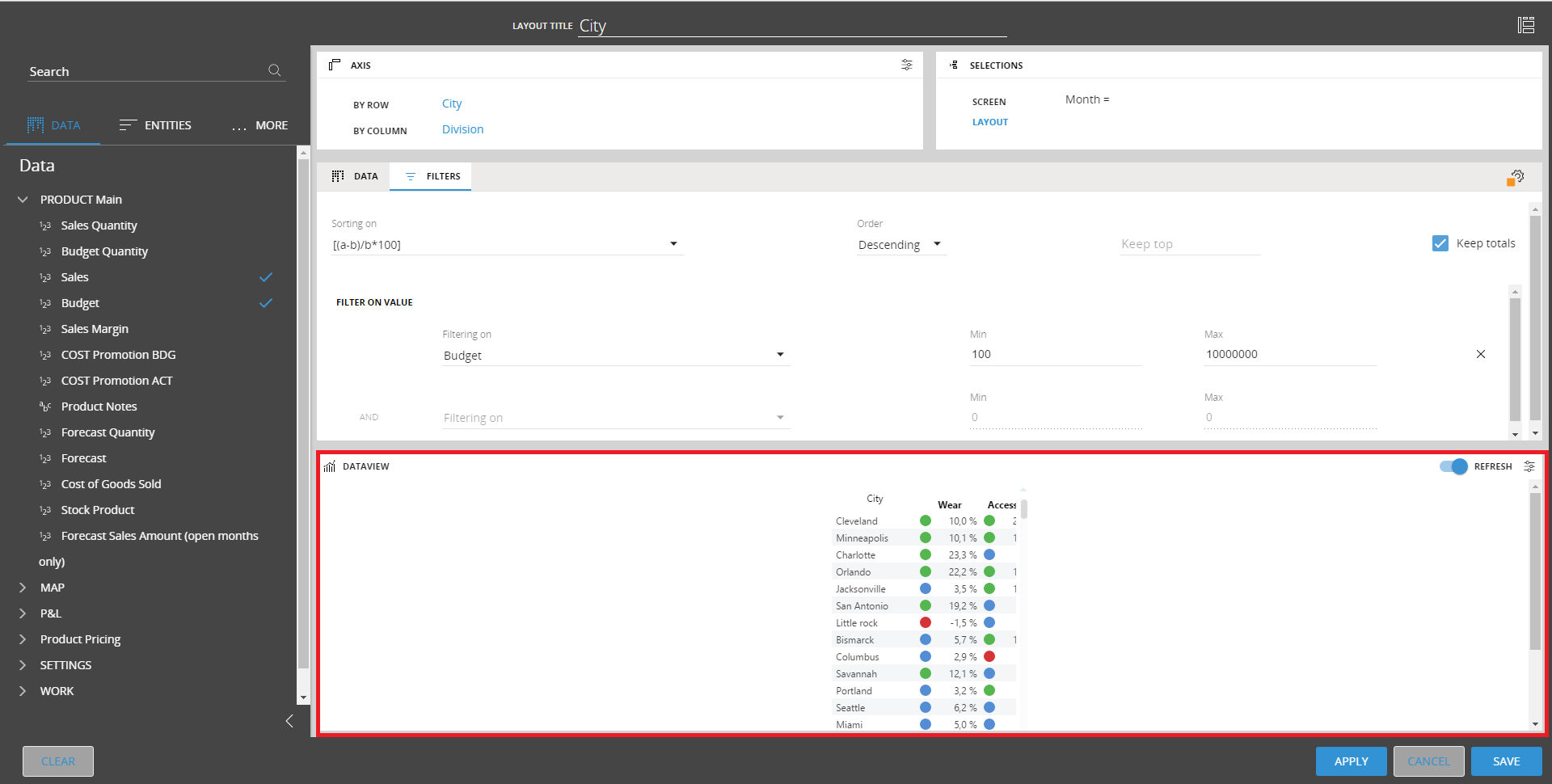

Split View:

Graphical View:

Layout Performance

Clicking on this icon

You will access layout performance tab, that contains information about cube structures, versions and performance.
