Board 10.1.4 Release Notes

What's New in Board 10.1.4

Board Web Log Enhancements

In order to improve the monitoring of web applications, a new log file is available.

The accuracy of the log file can be manually configured in the Web Server Configuration file that by default is in the following path:



C:\Program Files (x86)\Board\Board WebApi Server\App_Data\config\log.config



Short Notices:

if you do not find this file in the App_Data folder, you can download it here

Any change to the configuration file is immediately active. It is not necessary to restart the service





How to activate the web login

The log is automatically enabled during the installation of the Board 10.1.4 and can't be disabled. To activate it in existing installation, also after the version updated, download  etc etc.

With trace logging enabled, actions and results are logged to a file in a location you indicate. it is possible to define different properties of the tracking.





How to configure the properties of the Web Log

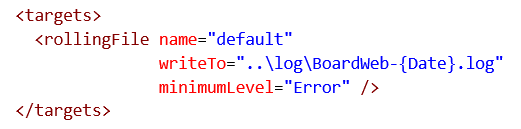

<targets>: it defines the properties of the log file. Possible values of this parameter are:




writeTo: It is the file path and name. Including the statement {Date} as part of the file name , the system creates a new log file every day.

minimunLevel: defines the level of accuracy of messages in the log file. Possible values of this parameter are:

Error: only exceptions and critical errors are logged

Debug: more details are logged, warning and useful information for troubleshooting

Verbose: all client/server communications



Short Notices:

By default the Accuracy level of the Log is set = Error (minimum) .

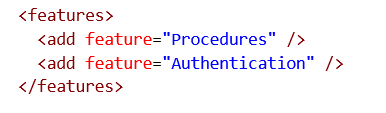

<features>: When the minimumLevel is set to Debug or Verbose, it is possible to apply filters to log only some specific instructions. Filters do not impact the error tracking.


Possible values of this parameter are:

System:  Web proxy status, Stop and start, recycle,  client actions ..

Authentication: all information and messages about authentication, including Saml2

Procedures: all procedure messages and client-side actions such as refresh, go to screen, popup,  etc..

ServerTask: all interactions with Board Engine task such as engine up and running, running batch etc

All: all instructions above

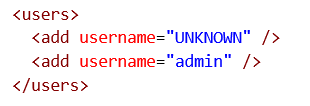

<users>: When the minimumLevel  is set to Debug or Verbose, it is possible to apply filters by user, i.e. it defines which username is going to be tracked.




Possible values of this parameter are:

username:  the name of the User which actions you like to track. If you add the username=UNKNOWN all the actions that can't be attribute to a specific user will be tracked too, such as Opening the Web Home Page (before logging)



Short Notices:

if you do not explicitly name any user all the users will be tracked



Fixes and minor changes






Upgrade instructions

After upgrading the Board Server it is required to upgrade all Board Client and Office Add-in installations to the same version 10.1.4. A Capsule created or saved using version 10.1.3 can't be re-opened with an older version such as version 10.0.3 or even older.

When you open Capsules created with prior versions of Board (version 9 or 8) a request of upgrade to Board 10 format prompts out. If you click Yes the Capsule is automatically updated in few secs and enabled to the Board Web Client. If you click No you can still go on to use the Capsule but with the Board Win Client only .



Upgrading Board Web from version 10.1.x to 10.1.4

In such situation the Log Tracking will be activated only and if only the log.config file is created in the proper folder (see above). Upgrading from 10.1.x to 10.1.4 doesn't create the file.  Only new installation does. You can then download the file from  here  and copy it in the folder.



Upgrading Board Web from version 10.0 to 10.1.4

All custom configuration settings of Board Web 10.0 which were stored in the following two files

c:\Program Files (x86)\Board\BoardWeb Api Server\BoardWebApiEngine.config

c:\Program Files (x86)\Board\BoardWeb Api Server\Web.config



are now in multiple files, all stored in the following subfolder

c:\Program Files (x86)\Board\BoardWeb Api ServerApp_Data\config



If you have an installation of Board Web server 10.0 and you defined some custom configurations in the Web.config or BoardWebApiEngine.config files, you must re-type your configurations in the new files of version 10.1.X located in the folder mentioned above.

It is of course not necessary if you already run 10.1.0 or later.



In such situation the Log Tracking will be activated only and if only the log.config file is created in the proper folder (see above). Upgrading from 10.1.x to 10.1.4 doesn't create the file.  Only new installation does. You can then download the file from  here  and copy it in the folder.
