REST API call Procedure step

A new Procedure step has been added in the "Execution flow" Action group in the Procedure editor: the "REST API call" step.
The new step allows for a deeper and much faster integration with other third-party applications and even other Board Platforms. The new "REST API call" step greatly enhances Board's ability to adapt to many scenarios where different business applications need to communicate with each other to exchange information securely over the Internet.

The new step adheres to the REST architectural style for APIs, allowing various tasks to be performed from a Board Procedure while ensuring scalability, flexibility and independence of the technology used by both Board and other systems.

The new Procedure step can make an API call to other systems (or other Board Platforms) to trigger automated processes, massively send or receive data, and much more.

Here's an example of the new step in action:



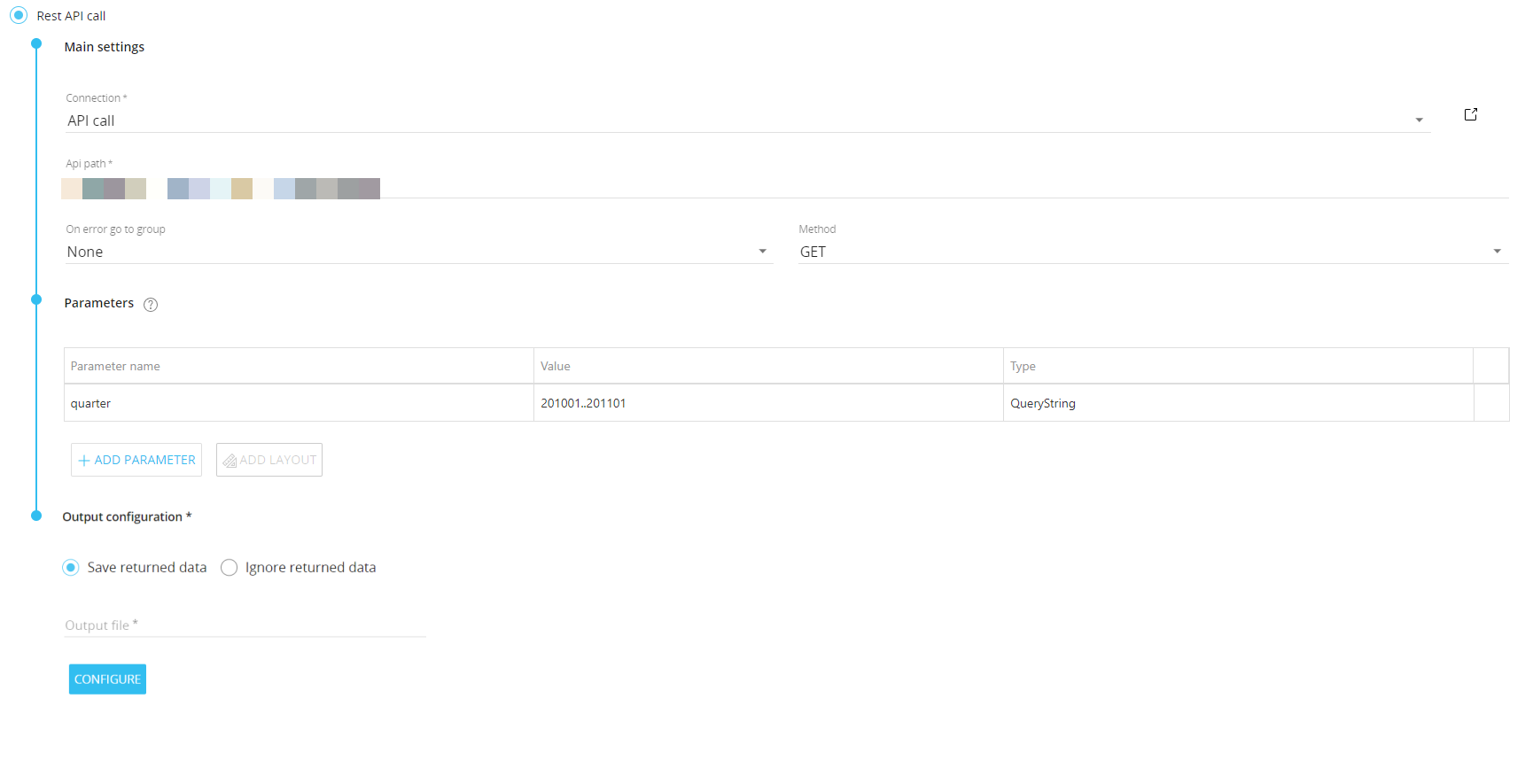

REST API call Procedure step configuration

Authentication

To use the new step, you must first configure the required Data source connection that will handle authentication. This can be done in the Data Sources section under “System Administration”.

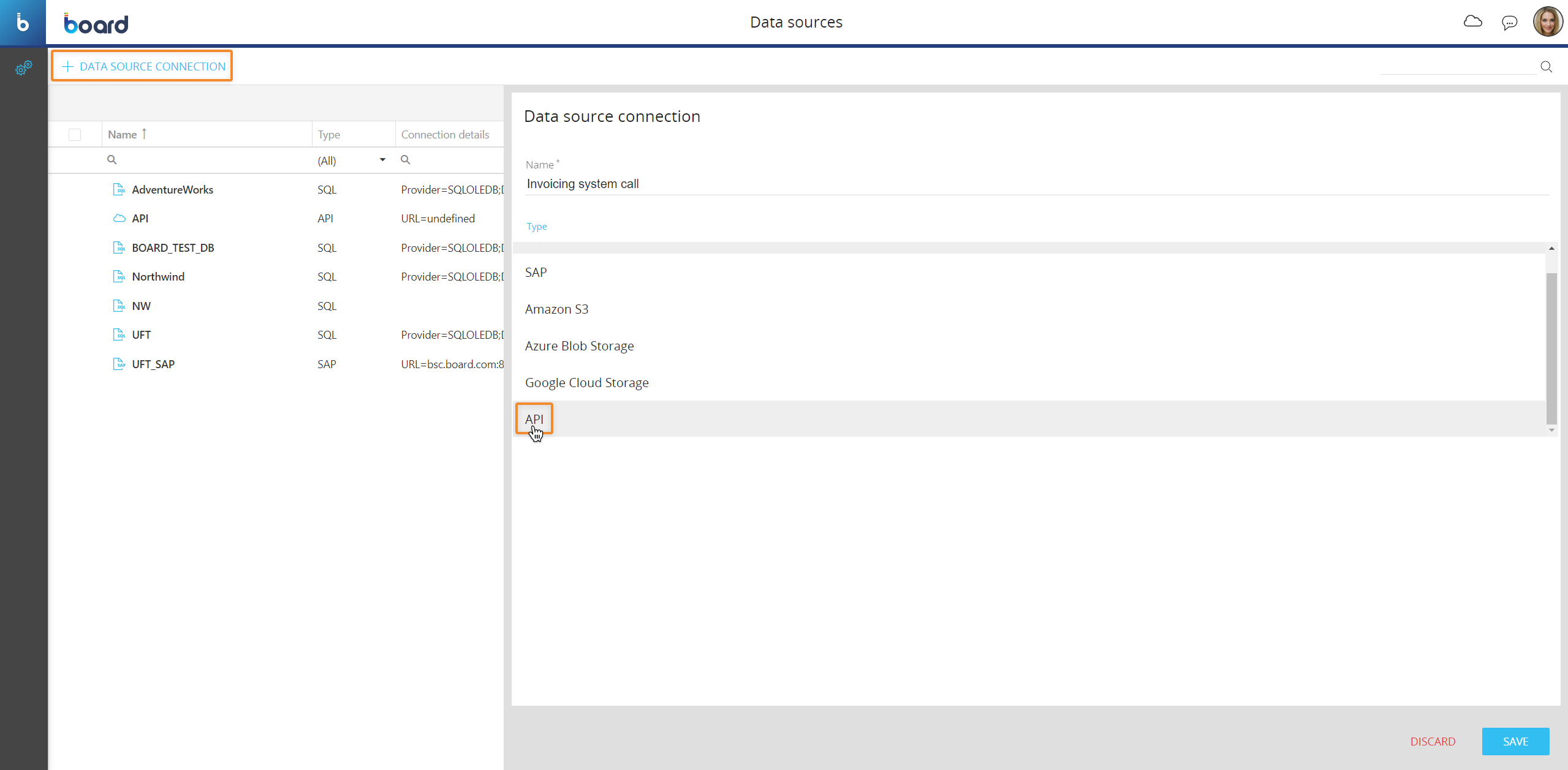

To do this, create a new Data source connection, give it a name and choose the “API” option in the “Type” dropdown menu.

Next, you need to choose one out of the supported authentication methods:

  • None
  • Basic Authentication. Credentials are transferred as user ID/password pairs
  • API Key. Credentials are transferred as key/value pairs. The key is an encrypted string, for example, AIzaSZasfDRa4JsXZ-HjGw7ISLn_3namBGewQe, where the value is used by the other system to uniquely identify the key
  • OAUTH V2 (Client credentials). Credentials are transferred as Client ID/Client Secret to authenticate Board and get an access token to allow the Procedure step to call the external API. Learn more about Client Credentials flow specifications.

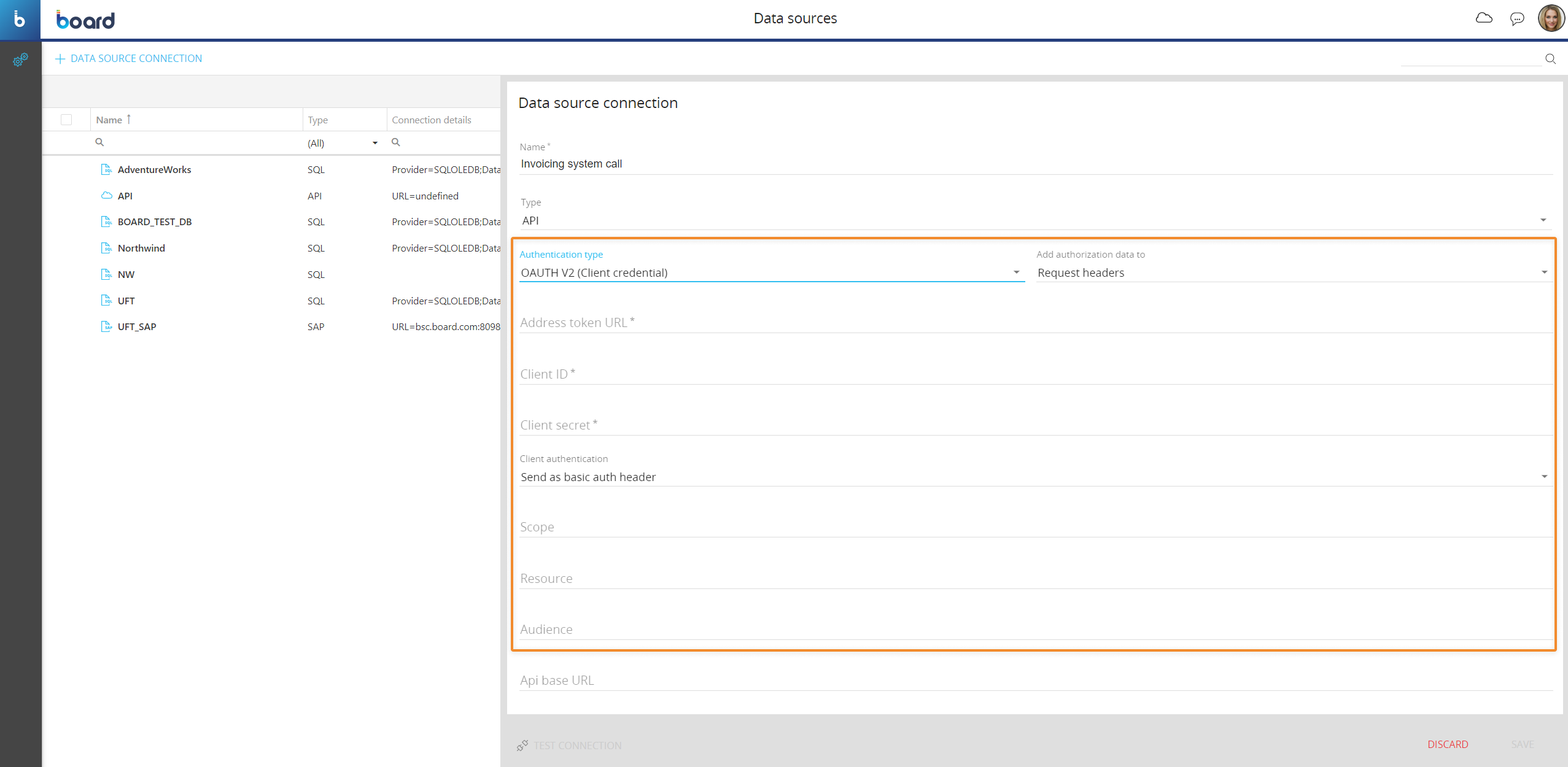

When you choose an authentication method, the necessary authentication configuration fields will automatically appear below (for example “Client ID”, “Client Secret” and so on).



The OAUTH V2 authentication type also offers a "TEST CONNECTION" button in the lower left corner of the configuration panel. If the connection is not successful, a notification message will appear.

The "API Base URL" field is common to all authentication methods and it can be useful when the external API that will be called by Board using the configured data source connection has a consistent prefix in its URL. If the "API Base URL" field is filled out, the saved URL will be automatically imported in the step configuration. See next paragraphs for more details.



Step configuration

Once the Data source connection has been configured, you can proceed to the step configuration.





Main settings and parameters

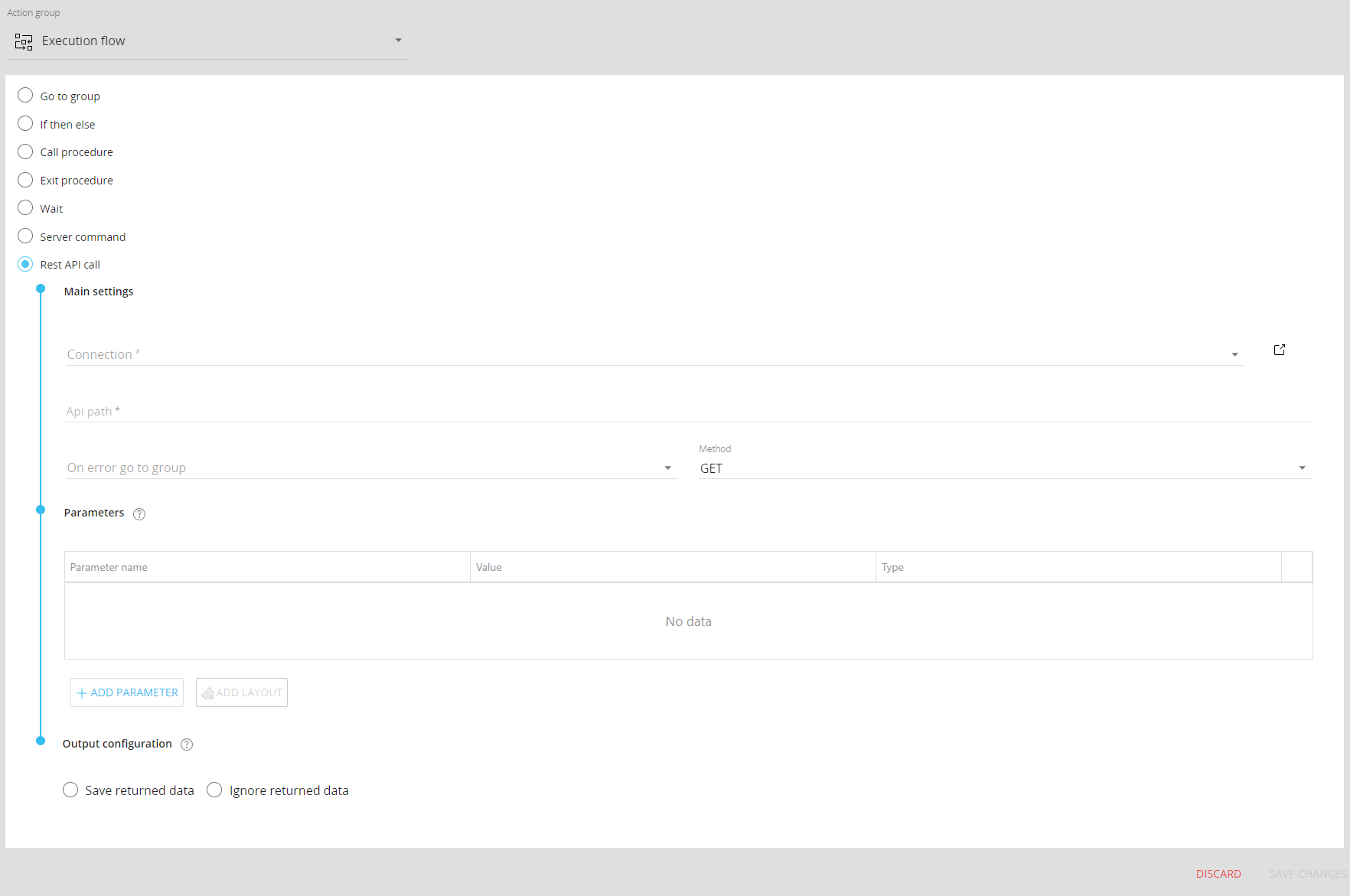

To configure the new step, add it to the desired Procedure and proceed as follows.



Main settings

Fill the Main settings section:

  1. From the "Connection" dropdown menu, select the appropriate Data source connection configured as explained above
  2. Enter the API endpoint URL in the "Api path" field. If the chosen Data source connection includes a base URL for the API endpoint, it will automatically appear next to the "Api path" field. You can also enter Substitution Formulas and Data Pickers as a part of the URL path, which are evaluated at runtime.
  3. (Optional) From the "On error go to group" dropdown menu, select a group of steps which the Procedure should run in case the API request returns an error status code
  4. Select the appropriate API method request: GET, POST, PUT, DELETE, and PATCH.



Parameters

In the Parameters section, you can add as many additional parameters you want to pass to the endpoint to receive the expected response.
To add a parameter, proceed as follows:

  1. Click on the "ADD PARAMETER" button to add a new row in the table
  2. FIll in the "Parameter name" value. The "parameter name" value is required and must be unique for the "Header" and "Body" types explained in step 4
  3. Fill in the "Value" field. This field supports fixed values (numbers and text strings) and the following Substitution formulas:
    • @datetime
    • @date
    • @time
    • @username
    • @user
    • @database
    • @DTB
    • @selection
    • @[entityname]

    Learn more about Substitution formulas

  4. Select one of the "Type" options: Header, Body or QueryString. This value indicates the component of the API request which will pass the information to the external API

The Content-Type property of the request header is automatically defined and cannot be customized. If you add a custom Content-Type value in the Parameters table, the request will fail.
The HTTP Authorization request header is defined based on how you configured the selected Data source connection, as explained in the "Authentication" paragraph: although you can send authentication credentials as a parameter, you shouldn't need to.



If the API method request is set to POST, PUT or PATCH, you can also configure a payload generated by a Layout definition that will be included in the request body.
To do so, proceed as follows:

  1. Click the “ADD LAYOUT” button to open the Layout editor. The Layout editor works exactly like the one implemented for the "Export Dataset" step and has the same constraints

  2. Configure a Layout to define the data that will be sent

  3. Replace the placeholder in the "Parameter name" column with a custom name (optional). The "parameter name" value is required and must be unique within the table

Once the Layout query is defined, an "EDIT LAYOUT" button will appear in the table. Click the "DETAILS" toggle to enable the "Extract zeroes" option to include zero values for selected Entities in the payload.

Please note that you cannot add multiple Blocks with the same heading to the same Layout definition. If you do so, an error message will appear during output configuration.
You can enable the "Extract zeroes" option only on the most nested Entity (of each Relationship tree) set By Row. This option works just like the Dataflow "extend" option for the calculation domain introduced in Board 11.





Output configuration

Response with payload

If the request is successful and the response includes a payload (data received) that you want to import in Board, select "Save returned data", enter the output file path (optional) and name, and click the "CONFIGURE" button to continue.

In the output configuration dialog, you can configure a custom selection that will be applied to Layouts sent as parameters of the call. When done, click the "NEXT" button to submit the API request.

The step supports only data received in JSON format in the response body. See supported response types for more details.

During the output configuration, results of substitution formulas entered as parameters will consider the current context in terms of user, selection, date, etc. If you need to configure the call with specific parameter values, first enter them as fixed values in the "Parameters" table, then begin the output configuration process as described at the beginning of this section.

The request timeout for the API request is 100 seconds.

If the payload (data received) conforms to a supported JSON structure, a sample of 100 rows will be displayed in the form of a flat data table in the "Data" area.

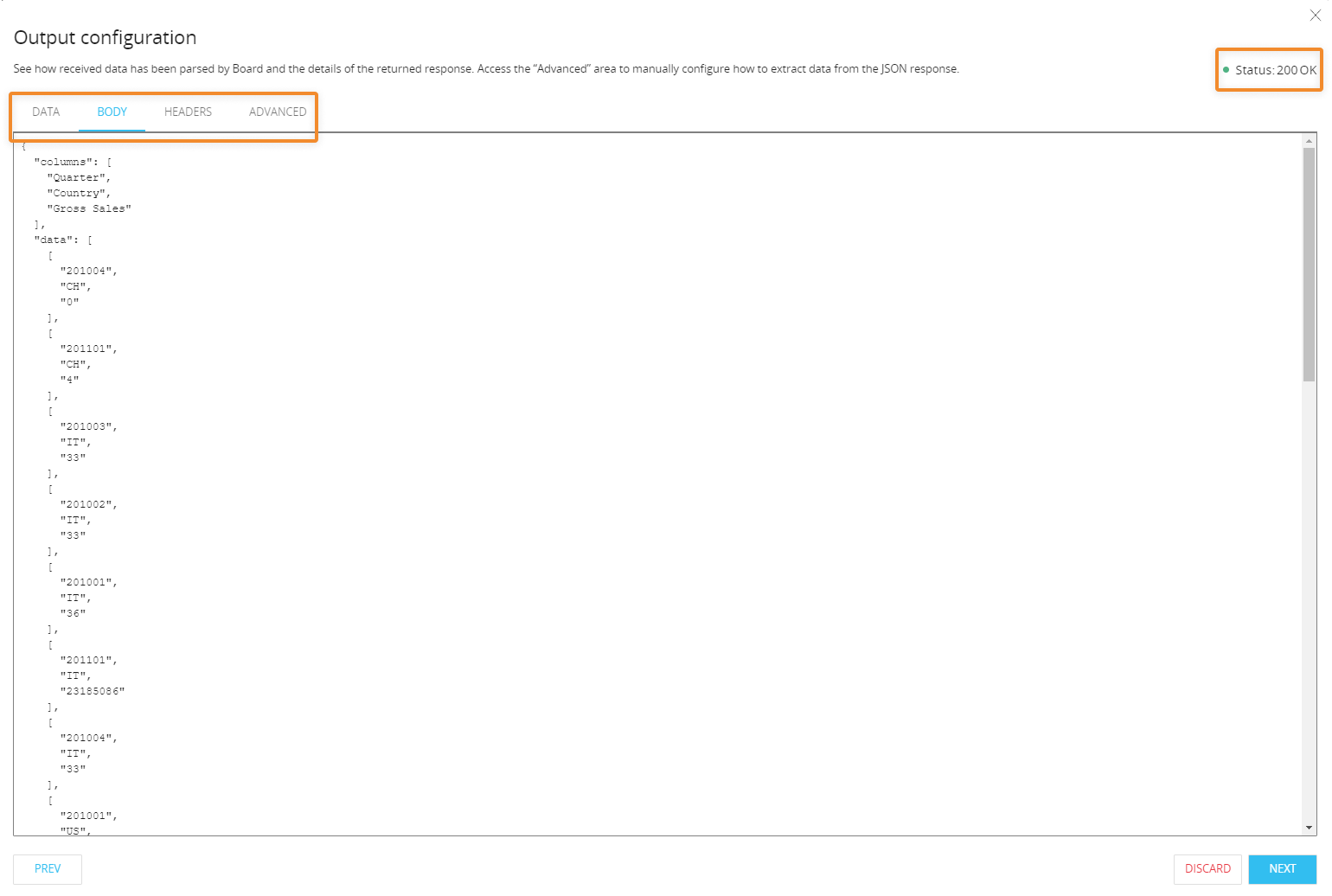

A tabbed menu allows you to check the details of the returned response (the HTTP response status code in the top right corner, and the response header and body) and to access the “Advanced” area to manually configure how to extract data from the JSON response.

JSON responses sent from Api queries created in the "API queries" section of a Board Data model are automatically parsed and converted to a flat data table, considering all fields included in the JSON response body. If you want to parse only certain fields of the JSON response body, you can use the manual configuration options available in the “Advanced” area, as described below.



The Advanced area

In the "Advanced" area, you can define a root element path and/or configure the JSON fields that need to be parsed using JSONPath expressions:

  • If you enter a root element path, Board will treat the defined element as the root element of the JSON structure. The root element path must be entered using the correct JSONPath expression with the dot-notation or the bracket-notation: in the parsing process, Board will consider inner or outer elements with respect to the root element based on the JSONPath expression entered.

    If the desired root element is a field which contains the "." (dot) or whitespace character, the expression should be entered using the bracket-notation. Example: ['earnings.today']
    The "~" (tilde) operator is not supported by the "Root path" field.

  • If you want to to have Board parse multiple specific JSON fields, proceed as follows:
    1. Click the "+" icon in the “Multiple JSON element mapping” area
    2. Enter the header title for the flat data table column
    3. Enter the JSONPath expression that defines the specific field that should be mapped to the corresponding header.

      Expressions pointing to fields which contain the "." (dot) or whitespace character should be entered using the bracket-notation. Example: sales.['earnings.today']
      Expressions pointing to non existing fields of the JSON structure are ignored, but the system does not consider this as an error since these fields may exist at a later time.
      Only expressions pointing to fields that generate a single column are supported. Expressions pointing to unsupported data structures (arrays with sub-arrays, arrays of objects, etc.) will generate an error.
      If a root element path has been defined, expressions must be written considering the position of the custom root element in the data structure of the JSON document.
      You can use the "~" (tilde) operator at the end of an expression to parse the key and not its values.

Any change made in the "Advanced" area will immediately be reflected in the "Data" area: click the "Data" tab to see how Board will extract the data from the JSON document based on your manual settings, even the configuration is not complete.

If the configuration defined in the advanced area is no longer valid for any reason, the Procedure will go to the group selected in the "On error go to group" settings. If no group is selected in that setting, the Procedure will fail.

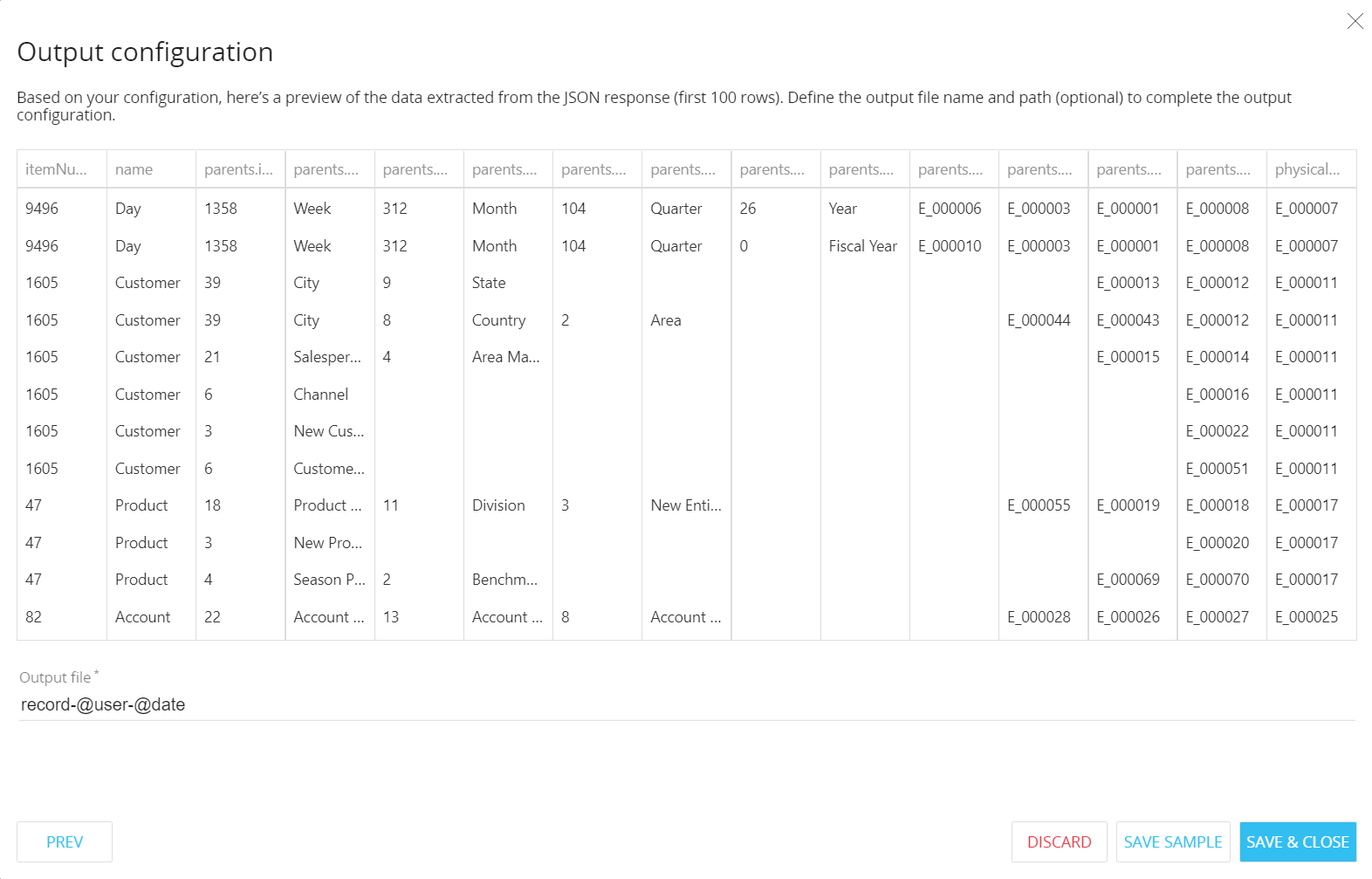

Once the mapping is finished, click "Next" to proceed to the last step of the output configuration, where you will be presented with a preview of the extracted data in a flat data table and the "Output file" field.



Output file

The "Output file" field indicates the path and name of the file where incoming data should be saved to. Incoming data is saved as a tab delimited text file (.csv).

The file cannot contain the TAB character, as it is used as a delimiter for each data field.
The field accepts only absolute paths or the file name, along with Substitution Formulas. Entering @user - @database in the field will generate, for example, a file named Maryprice - Budgeting.csv

The results of specific substitution formulas used in the "Output file" field are different from those obtained in Board due to character restrictions on filenames and folders.
In this case, the result of the following substitution formulas is always returned in the format shown below:
@DateTime → yyyy-MM-dd-hh-mm-ss
@DateMonth → yyyyMM
@Date → yyyy-MM-dd
@Time → hh-mm-ss

For @selection and @[entityname] formulas:
- The carriage return character is replaced by an hyphen "-"
- The colon ":" is replaced by the equal sign "="
- The  slash character "/" is replaced by "of"

For on-premises environments: if only the filename value is entered, the file will be saved in the default path: [your-board-path]\Data model name\filename.csv
For cloud-based environments: if only the filename value is entered, the file will be saved in the default path: \Data model name\filename.csv. Cloud Customers can export the file to their shared storage area (z:\) by entering the desired path or by using the %bss% environment variable. If the path you entered doesn't exist, Board will automatically create non-existent directories on the shared storage area.
If no file name and no path are entered, Board will not save any file.
Numeric data in the response body will be saved as per the JSON standard (integer or floating point). The format can be changed using an ETL formula in the Data reader during the import process.
Dates in the response body will be saved as text strings in the csv file. The format can be changed using an ETL formula in the Data reader during the import process.

The "SAVE SAMPLE" button allows you to save the data displayed in the table to a file, following the configuration of the "Output file" field described in the previous paragraph. That file can be used to configure a Data reader which will be executed by a separate Procedure step in order to load the data received from the response into Board. See supported response types for more details.

Click the "SAVE & CLOSE" button to temporarily save the output configuration settings.

The settings saved in the output configuration process are saved permanently only when the entire Procedure step is saved.
As a consequence of the new step, a new option has been added to the "Text File Data reader" Procedure step: the new "Delete file after reading" flag allows you to delete the source text file after the execution of the Data reader.



Response with empty or useless payload or with no payload

If the request is successful, but you don't want to save the payload (received data) included in the response or the response does not have one, select "Ignore returned data".

Click the "TEST CALL" button that appears below to send a test request to the external API.

In the test call dialog, you can configure a custom selection that will be applied to Layouts sent as parameters of the call. Click the "NEXT" button to submit the API request.

After the request has been sent, the interface of the dialog changes in order to display the details of the returned response: the HTTP response status code is displayed in the top right corner, while the response header and body (if any) is shown in the main text area.

Click the "SAVE & CLOSE" button to temporarily save the custom selection sent with the API request.

The selection saved in the test call dialog is saved permanently only when the entire Procedure step is saved.

Results of substitution formulas entered as parameters will consider the current context in terms of user, selection, date, etc. If you need to test the call with specific parameter values, enter them as fixed values in the "Parameters" table.

The request timeout for the test call is 100 seconds.





Supported response types

The new step is capable of handling only data received in JSON format in the response body.

Only certain JSON data structures can be parsed automatically: if you want to parse only certain parts of a JSON structure, you can use the manual configuration options available in the "Advanced" area, as long as the manually selected data structures are supported.

The following JSON data structures are supported and automatically parsed as described below:

  • If the JSON document includes only primitive values (strings, numbers, booleans, and null), it is converted to a single column table, as shown below.

    "John"
     ↓
    Values
    John



  • If the JSON document includes primitive values wrapped in an object, it is converted to a multi-column table where each column represents a field. The columns are sorted in alphabetical order, as shown below.

    {
        "status": "success",
        "result": 1000.0
    }

     ↓
    Status Result
    success 1000



  • If the JSON document includes primitive values in an array structure, it is converted to a single column table with a row for each valid value, as shown below.

    [
      1.0,
      2.52
    ]

     ↓
    Values
    1
    2.52



  • If the JSON document includes objects in an array structure, it is converted to a multi-column table where each column represents a field included in at least one object. The columns are sorted in alphabetical order and each row of the table represents a valid value of the array, as shown below.

    [
      {
        "Day": "20210101",
        "Customer": "C300",
        "Product": "P300",
        "Sales": 1.0
      },
      {
        "Day": "20210102",
        "Customer": "C300",
        "Product": "P300",
        "Revenues": 3.0
      },
      {
        "Day": "20210103",
        "Customer": "C300",
        "Product": "P300",
        "Sales": 20.0,
        "Revenues": 10.0
      }
    ]

     ↓
    Customer Day Product Revenues Sales
    C300 20210101 P300   1
    C300 20210102 P300 3.
    C300 20210103 P300 10 20



  • If the JSON document includes objects nested inside other objects, it is converted to a multi-column table where each column represents a field included in at least one object.
    Headers of columns representing objects nested inside other objects are generated with a special notation where the first value is the uppermost parent key of the JSON node, and the second and subsequent values are other keys down to the most nested object. Each value is separated by a "." (dot) character.
    Structures such as parent → child → child are flattened as parent.child.child.

    In the following example, the header for the "address" key is obtained by concatenating the first parent key of the JSON node ("properties") with the child key ("server") that is also the parent key of "address", using a dot as separator:

    "properties": {
        "server": {
            "address": "localhost",
            "port": 1000
            }
      }


    header = properties.server.address (bold added)


    The following JSON document is converted as shown below.

    {
      "count": 100,
      "executionTime": "01:01",
      "user": {
        "name": "luke",
        "role": "power"
      },
      "properties": {
        "server": {
            "address": "localhost",
            "port": 1000
            }
      }
    }

    count executionTime properties.server.address properties.server.port user.name user.role
    100 1:01:00 AM localhost 1000 luke power



  • If the JSON document includes arrays of objects with values in one or more array structures, it is converted to a multi-column table where each column represents a field included in at least one object. The columns are sorted in alphabetical order and each row of the table represents a combination of the values in each array with values in other fields (or arrays) in the object, as shown below.

    [
      {
        "Day": "20210101",
        "Customer": "C300",
        "Product": "P300",
        "Sales": [
          {
            "amount": 100.0,
            "currency": "EUR"
          },
          {
            "amount": 150.0,
            "currency": "USD"
          }
        ]
      },
      {
        "Day": "20210102",
        "Customer": "C300",
        "Product": "P300",
        "Sales": [
          {
            "amount": 200.0,
            "currency": "EUR"
          },
          {
            "amount": 250.0,
            "currency": "USD"
          }
        ]
      }
    ]

    Customer Day Product Sales.amount sales.currency
    C300 20210101 P300 100 EUR
    C300 20210101 P300 150 USD
    C300 20210102 P300 200 EUR
    C300 20210102 P300 250 USD



Since arrays can include primitive values, objects and arrays, the first valid item in the JSON data structure defines how data will be converted based on the rules described above. If the following items do not meet the first rule applied, they will be discarded as Board parses the entire JSON document.

JSON responses sent from Api queries created in the "API queries" section of a Board Data model are automatically parsed and converted to a flat data table, considering all fields included in the JSON response body. If you want to parse only certain fields of the JSON response body, you can use the manual configuration options available in the “Advanced” area.

Boolean values are written in the file as "0" (false) and "1" (true).

Null values are written in the file as they are read, as in the example below:

After the decimal point, zeros after non-zero digits are always removed during the flattening process.
Example:
 "result": 1000.42560 → 1000.4256

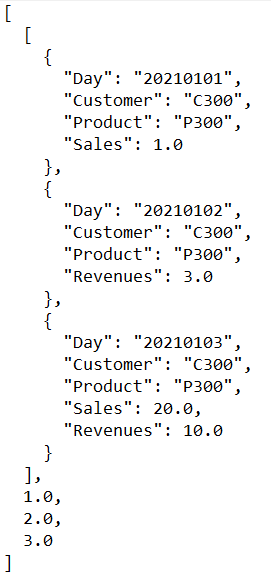

The step does not support arrays with sub-arrays, as in the example shown below.

If, based on the previous rules, no valid values are found in the JSON, the Procedure will fail and a parsing error notification message will be displayed.
The step is not capable of automatically reading data in chunks: in case the external system provides chunked responses, you will need to set up multiple Procedure steps to receive all data.

In case of errors, for more details on a REST API call step configuration: at verbosity level "Information", when the remote server returns an error, the corresponding log entry will also include the URL of the request sent, the method, the Headers, and the Body (if applicable).
